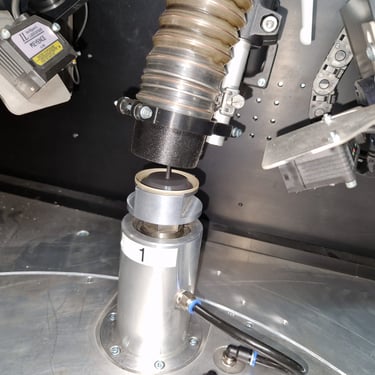

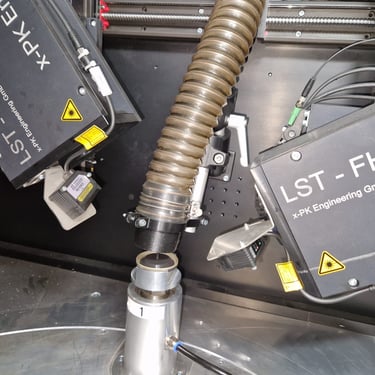

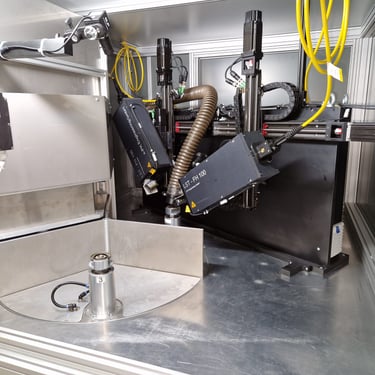

Development of a high-precision custom machine for the automated removal of vulcanization flash on radial shaft seals. The non-contact process utilizes fiber laser technology to ensure a clean cut at the tool parting line without causing thermal damage to the sealing lip.

• Application: Trimming of FKM seals (inner diameter 70 - 90 mm).

• Material Thickness (Cut Thickness): Up to 2 mm (vulcanization flash).

• Laser Source: Fiber laser.

• Beam Delivery: Fiber optic cable with integrated collimator.

• Optics: Beam diameter 7 mm (input), focal diameter < 0.2 mm.

• Cycle Time: Approx. 4 - 6 sec. per component.

Project Description:

Technical Data:

Skills & Deliverables:

• Special Purpose Machinery

• 3D Assembly Design & Kinematics

• Design for Manufacturing (DFM)

• Project Support from Concept to Commissioning

• Autodesk Inventor

• FEM Simulation

• Mechanical Engineering Calculations

• 3D Printing (Prototyping)

The following videos show the machine in operation:

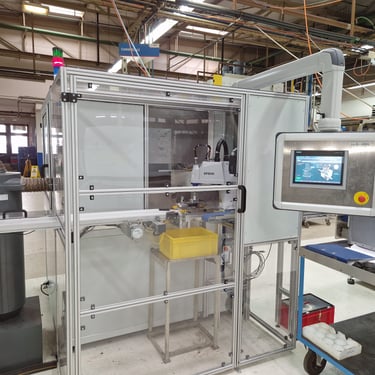

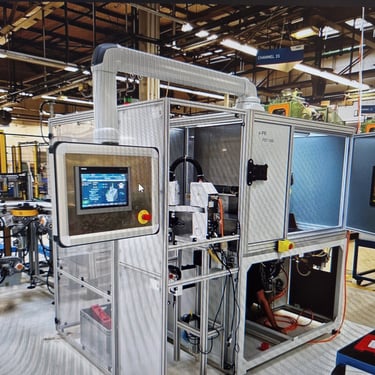

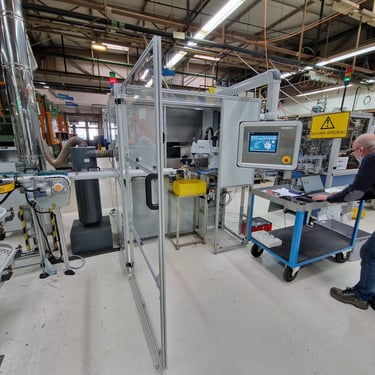

Fully Automatic Laser Trimming and Deburring Machine
